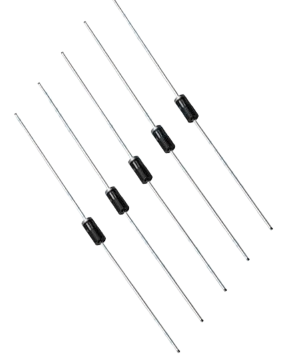

1N4007 Diode – 1000V 1A General Purpose Rectifier
₹2.0
Prices include applicable taxes.
457 sold
Only 43 left!
Check Delivery Availability
The 1N4007 is a widely used general-purpose rectifier diode designed to allow current to flow in one direction only. It supports a high reverse voltage of up to 1000V and a forward current of 1A, making it suitable for a wide range of low-frequency AC to DC conversion circuits.
Ideal for power supplies, reverse polarity protection, battery chargers, and DIY electronics, this diode is a standard component in nearly every electronics toolkit.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Part Number | 1N4007 |
| Package Type | DO-41 (Axial) |
| Maximum Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum Forward Current (IF) | 1A |
| Peak Forward Surge Current (IFSM) | 30A (8.3ms) |
| Reverse Recovery Time (trr) | ~2µs |
| Maximum Forward Voltage Drop (VF) | 1.1V @ 1A |
| Operating Temperature Range | -65°C to +150°C |
| Polarity | Cathode marked with band |
Frequently Asked Questions
🅰️ Yes, connect in series with the power supply to protect from reverse voltage.
🅰️ 1N4007 has a higher reverse voltage rating (1000V) than 1N4001 (50V), making it more versatile.
🅰️ No, it’s for general-purpose use. For high-speed switching, consider UF4007.
🅰️ Yes, it's ideal for circuits up to 1000V reverse voltage. Perfect for 12V DC systems.
