IRLB4132 N-Channel Power MOSFET - 30V, Up to 78A Complete Guide
The IRLB4132 N-Channel Power MOSFET is a robust and highly efficient switching device designed for high-current, low-voltage applications. With a maximum drain current of 78A and an exceptionally low Rds(on) of just 4.5 mO, this HEXFET power MOSFET is perfect for motor drivers, power supplies, DC-DC converters, and battery management systems.
In this comprehensive guide, we'll explore the key specifications, advantages, practical applications, and how it compares to other popular MOSFETs in its class.
Did You Know?
The "HEXFET" technology in IRLB4132 refers to International Rectifier's (now Infineon) hexagonal cell structure, which provides higher cell density and lower on-resistance compared to traditional MOSFET designs.
Key Specifications of IRLB4132 Power MOSFET
| Parameter | IRLB4132 | IRF3205 | IRFZ44N |
|---|---|---|---|
| Package | TO-220 Standard | TO-220 | TO-220 |
| Drain-Source Voltage (Vds) | 30V | 55V | 55V |
| Continuous Drain Current (Id) | 78A @ 25°C High Power | 110A @ 25°C | 49A @ 25°C |
| Rds(on) @ Vgs=10V | 4.5 mO Super Low | 8.0 mO | 22.1 mO |
| Gate Threshold Voltage (Vgs(th)) | 1.0 - 2.0V | 2.0 - 4.0V | 2.0 - 4.0V |
| Total Gate Charge (Qg) | 44 nC | 120 nC | 63 nC |
| Power Dissipation (Pd) | 140W | 200W | 94W |
| Best For | Low Voltage, High Current | Medium Voltage/Current | General Purpose |
| Price Range | ₹40 - ₹60 Value | ₹30 - ₹50 | ₹20 - ₹35 |
Why Choose IRLB4132 Power MOSFET?
The IRLB4132 stands out in power electronics applications due to its:
- Extremely Low Rds(on) - Minimizes conduction losses and heat generation
- High Current Handling - Supports up to 78A continuous current
- Low Gate Threshold Voltage - Can be driven directly from 3.3V/5V microcontrollers
- Fast Switching Speeds - Low gate charge enables efficient PWM operation
- Excellent Thermal Performance - TO-220 package with good power dissipation
- Cost-Effective Solution - Premium performance at competitive pricing

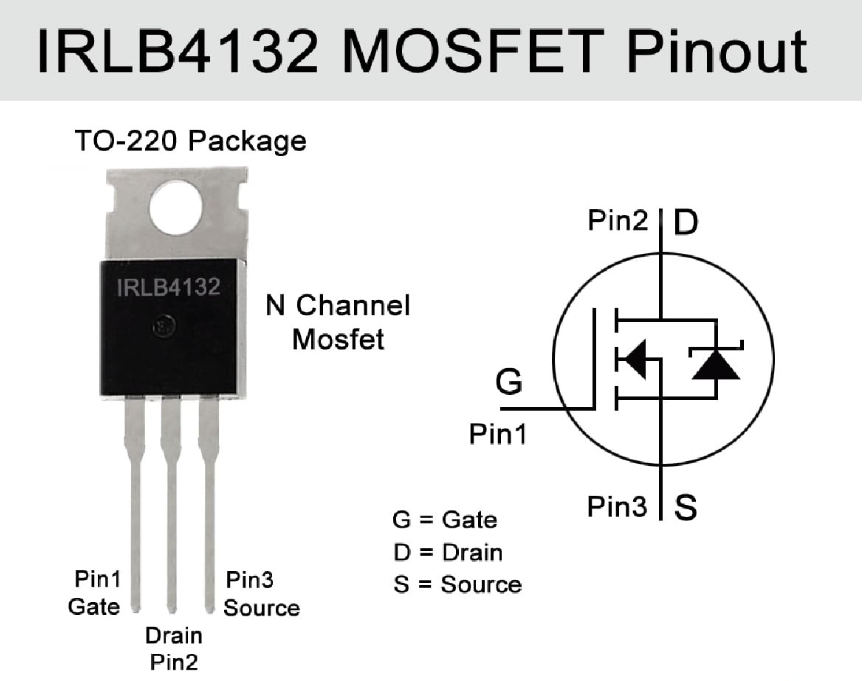

Pin Configuration & Typical Connection
The IRLB4132 comes in a standard TO-220 package with three pins:
Pinout Details:
- Pin 1 (Gate) - Control pin connected to microcontroller/PWM source
- Pin 2 (Drain) - Connected to load (positive side)
- Pin 3 (Source) - Connected to ground/return path
Important Design Tip
Always use a gate resistor (typically 10-100O) between your microcontroller and the MOSFET gate to prevent ringing and oscillation. For high-frequency PWM applications, consider using a gate driver IC for optimal switching performance.
Popular Applications of IRLB4132
The IRLB4132 is versatile for various high-power switching applications:
- Motor Speed Controllers - For robotics, drones, and electric vehicles
- DC-DC Buck/Boost Converters - High-efficiency power supplies
- Battery Management Systems (BMS) - Battery protection and balancing
- Solid State Relays - Fast switching with no mechanical wear
- LED Drivers - High-power LED dimming and control
- Solar Charge Controllers - Efficient power management
- Audio Amplifiers - Class D amplifier output stages
IRLB4132 vs Other MOSFETs: Selection Guide
Choose IRLB4132 When:
- Working with low voltage (=30V) systems
- Requiring maximum current capability up to 78A
- Minimizing conduction losses is critical
- Driving directly from 3.3V/5V microcontroller GPIO
- Building high-efficiency switching power supplies
Choose Other MOSFETs When:
- Higher voltage (>30V) applications needed
- Extreme power dissipation (>140W) required
- Surface mount package (SMD) is preferred
- Ultra-high frequency switching (>500kHz)
- Cost is primary constraint for lower current apps
Heat Management Considerations
While the IRLB4132 has low Rds(on), proper heat sinking is essential for high-current applications:
- Use thermal paste between MOSFET and heatsink
- Select heatsink based on expected power dissipation
- Consider forced air cooling for continuous high-current operation
- Monitor MOSFET temperature during operation
- Implement thermal shutdown in critical applications
